Product Summary

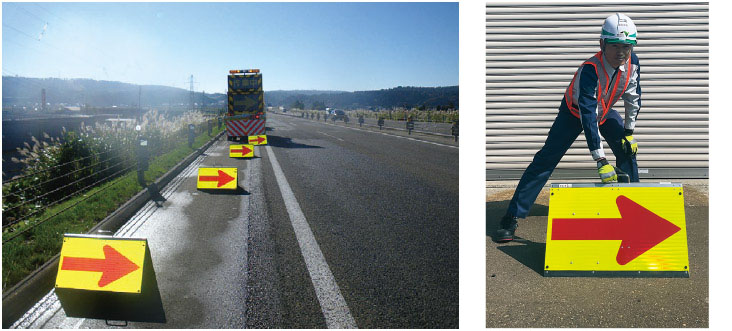

Install arrow boards quickly, safely and securely. Easy to use by anyone !!!

下部に飛び出した開脚用装置が矢印板設置時に地面に接触すると自動的に矢印板が開脚し、持ち上げると自動的に閉脚する構造。

1. 軽量かつ取っ手が付いているため、持ち運びが便利。
2. Since it is an automatic opening and closing type, it is possible to carry out regulatory work safely and with peace of mind while looking directly at ordinary vehicles.
3. Since you can select the size of the arrow plate, the type of reflective sheet, the color, and the presence or absence of weight, it can be used in any scene.

Features/Specifications

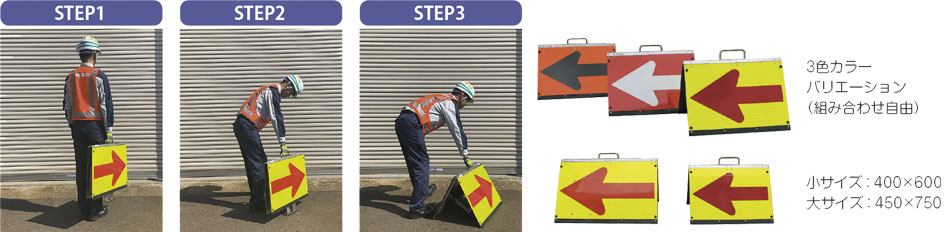

1. 地面に設置するだけで矢印板が開き、持ち上げるだけで矢印板が閉じる構造。

1. Since you can select the size of the main body, the type of reflective sheet, the color scheme, and the presence or absence of weights, it can be used in any scene.

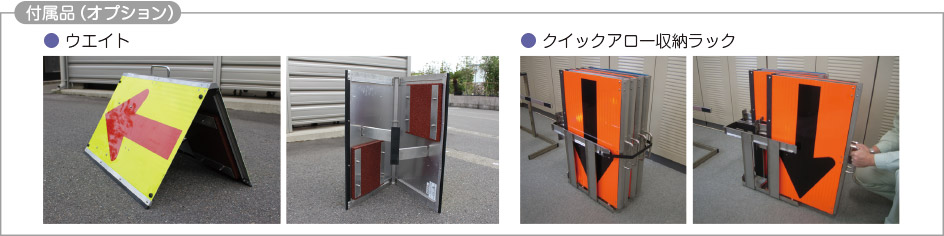

Standard	Reflective sheet type	Reflective sheet color scheme	Accessories (option)
Size: 450 * 750 Weight: 5kg Plate material: Aluminum (1.5 mm)	Super bright (diamond grade)	①地色　赤／黄／オレンジ ②矢印色　白／黒／赤 ※chooseable	Weight (W = 4kg)
	High-intensity prism (fluorescent high-intensity prism lens)
	Enclosed lens
Size: 400 * 600 Weight: 4kg Plate material: Aluminum (1.5 mm)	Super bright (diamond grade)	①地色　赤／黄／オレンジ ②矢印色　白／黒／赤 ※chooseable	Weight (W = 3kg)
	High-intensity prism (fluorescent high-intensity prism lens)
	Enclosed lens

Achievements (sales/construction/introduction)

当社：　　　
他道路会社：
民間会社等：

1,299基
358基
270基

Manufacturer: Tsubame Shinko Kogyo Co., Ltd.
