SABHC®（サーベック） アンカーボルト劣化判定システム
Patent No. 6088088
特許 第7051532号
NEXCO Engineering Hokkaido Co., Ltd.Product Summary
Anchor bolt deterioration diagnosis
NETIS登録番号 QS-180039-A
共同開発：(株)ニチゾウテック

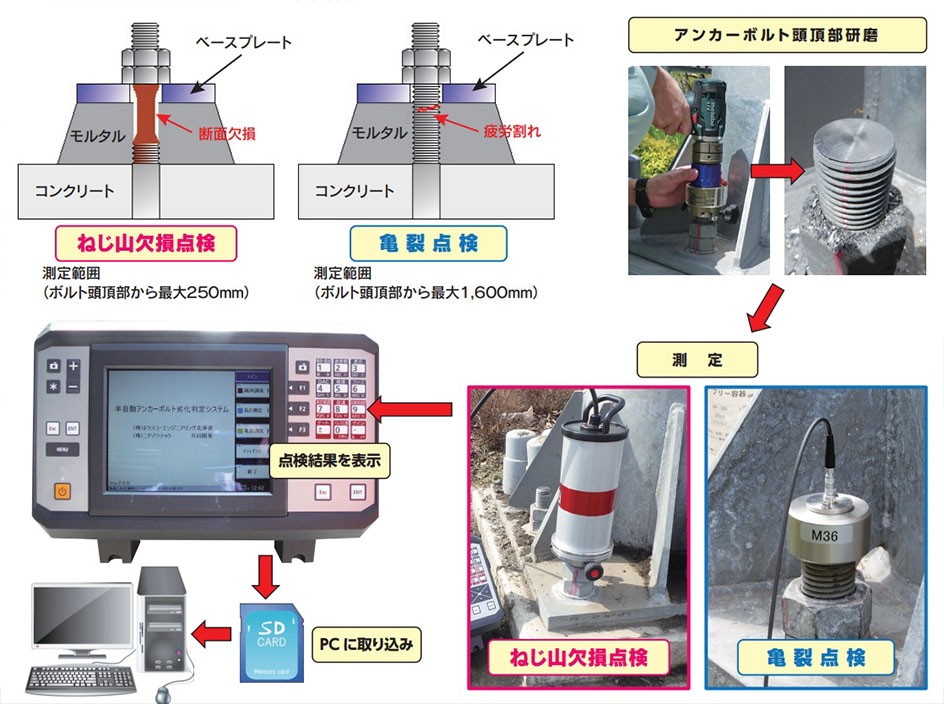

Using ultrasonic technology, it is possible to determine the deterioration status of the anchor bolt in the invisible part without removing the nut.

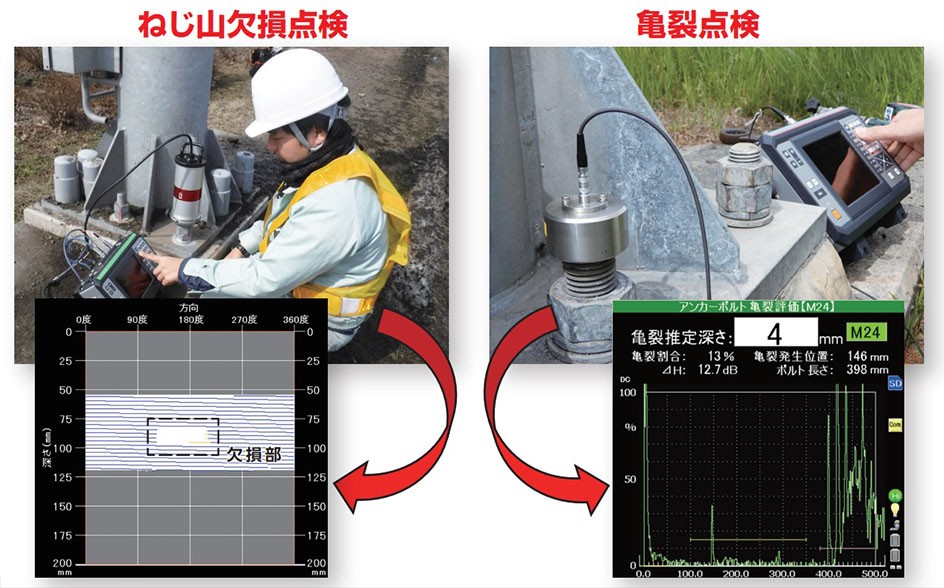

- Detects thread loss and cracks on bolts with simple operation
- For thread defect inspection, 360-degree visualization of the entire circumference of the bolt
- For crack inspection, display of crack depth, crack location, crack ratio, anchor bolt length
- Compatible with M18, M20, M22, M24, M27, M30, M33, M36, M42 anchor bolts
- Records inspection results and allows data management by PC
Features/Specifications
- Ultrasonic flaw detector (system software installed): 1 unit
- Ultrasonic flaw detection jig/probe (for thread defect inspection): 1 set
- Ultrasonic flaw detection jig/probe (for checking bolt length and cracks): 1 set
- Anchor bolt top polishing device: 1 set
Achievements (sales/construction/introduction)
当社 ：
中日本 ：
西日本 ：
他道路会社：
民間会社等：
27台
14台
5台
3台
3台
