Snow and ice management
Trapezoid delineator for cold climates Beam guide
Patent No. 5491205
East Japan Expressway Co., Ltd.Product Summary
Joint development: NTW Co., Ltd.

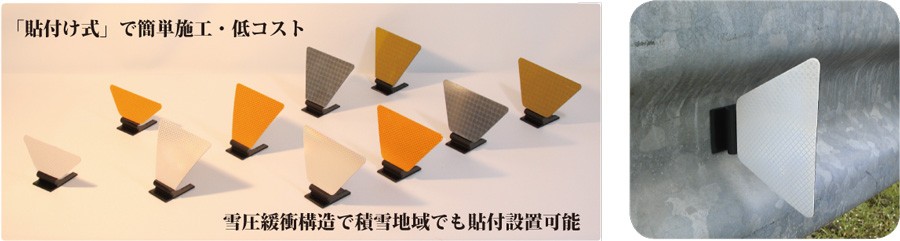

High durability/stick type trapezoidal gaze guide for guardrail

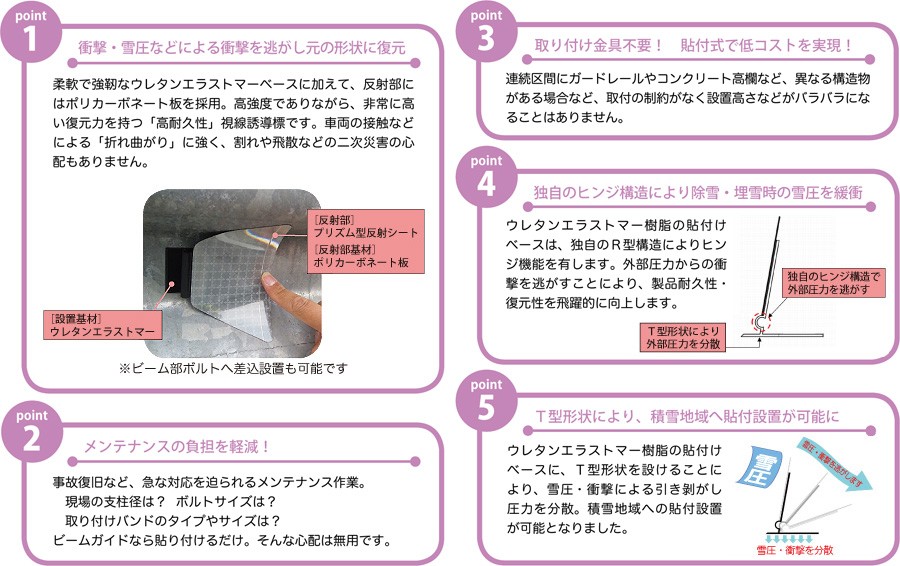

Features/Specifications

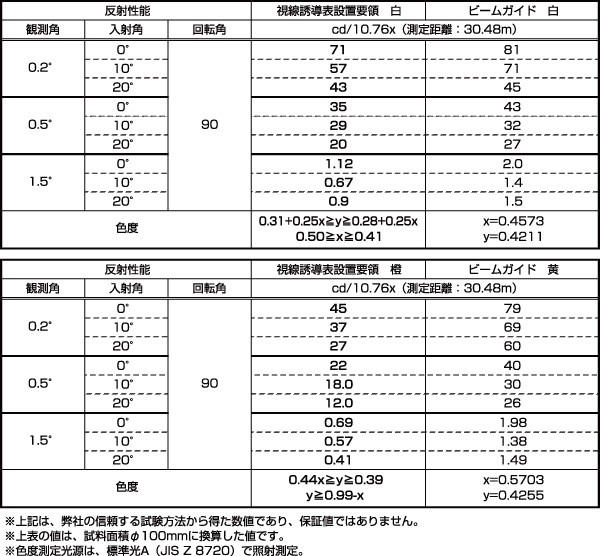

Gaze guide setting procedure Conforms to reflection performance and color <<JIS D 5500 test>>
*Please use a special primer for adhesion to concrete surface.
*Be sure to read the installation manual enclosed with the product when installing.
*Because the initial adhesive strength will be reduced when the temperature is below 10℃, please install it at around 20℃. Alternatively, warm the installation surface with a burner before installing it.
*Be sure to read the installation manual enclosed with the product when installing.
*Because the initial adhesive strength will be reduced when the temperature is below 10℃, please install it at around 20℃. Alternatively, warm the installation surface with a burner before installing it.
Achievements (sales/construction/introduction)
当社 ：
他道路会社：
公共団体等：
民間会社等：
9,890基
2,822基
2,305基
527基
